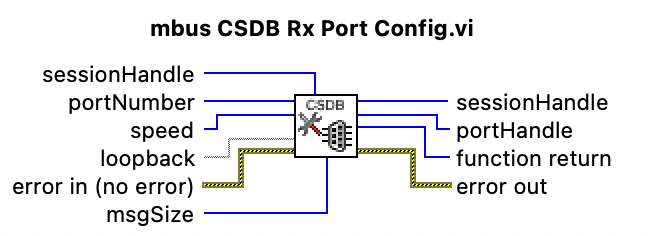

mbus CSDB Rx Port Config.vi
Description
CSDB Rx Port Config function sets up the selected receive port configuration. This function opens a port and provides a portHandle. This portHandle must be wired to all subsequent VIs that uses this port.
| Parameters | ||
|---|---|---|
| error in | in | error conditions that occur before entering the function |
| sessionHandle | in | reference to the current Multibus session block handle |
| portNumber | in | port number to configure |
| speed | in | selected port speed: Low (12.5 Kbps) or High (50 Kbps) |
| loopback | in | CSDB messages are looped back from Tx port to the Rx port |
| msgSize | in | message size in bytes |
| sessionHandle | out | reference to the Multibus session |
| portHandle | out | reference to the configured port |
| error out | out | error information |
| function return | out | function execution status |
Availability
Available in Multibus VI 1.3 and later.
See Also
mbus CSDB Port Config.vi mbus CSDB Tx Port Config.vi mbus CSDB Port Close.vi
