CSDB Schedule

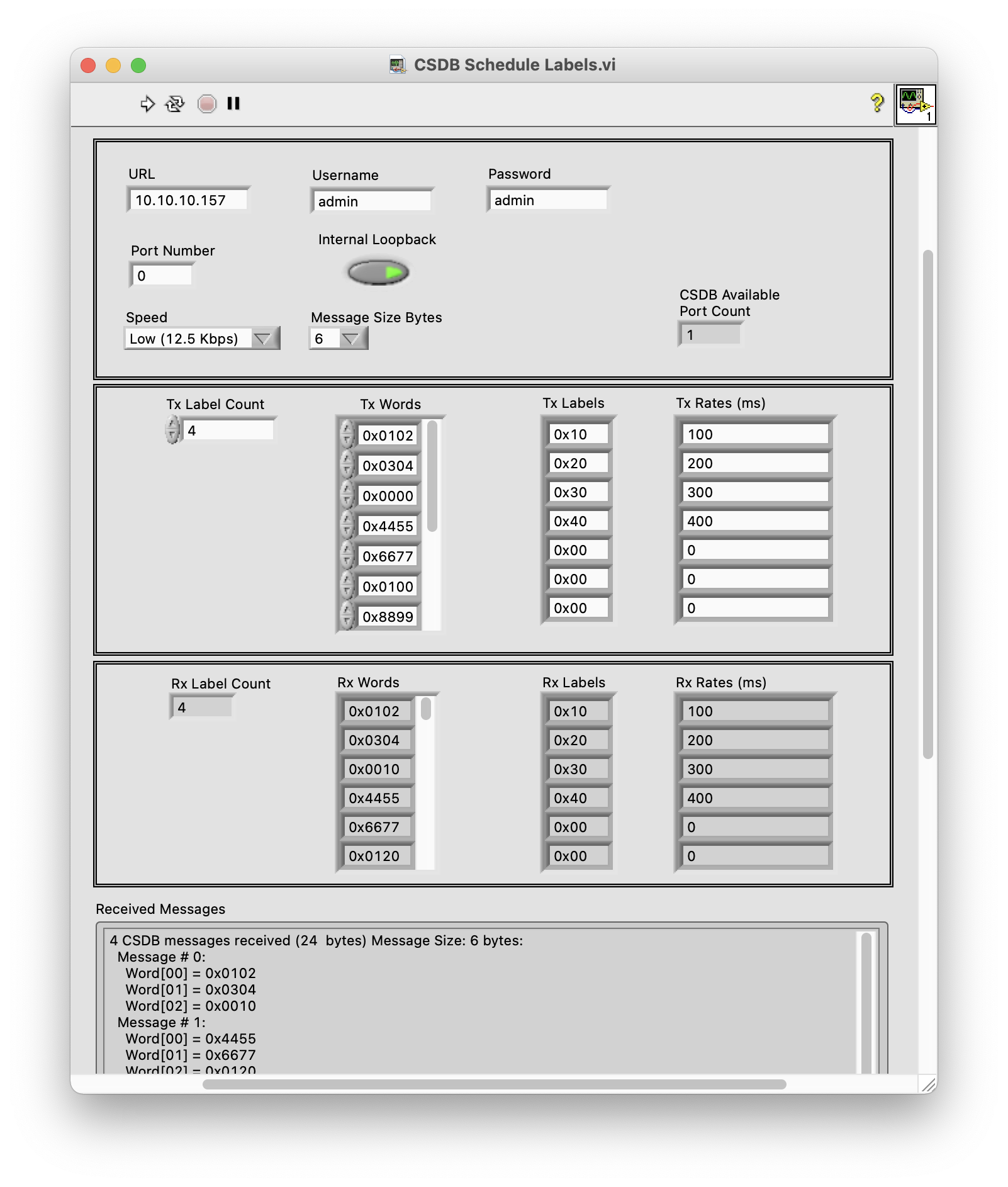

CSDB Schedule Labels demo is used to schedule CSDB words transmit / receive cycle with the possibility to select the word rate for each CSDB label.


Once session is started, this demo configures the CSDB port features (speed, parity and internal loopback).

Before starting the transmit / receive cycle, user needs to select the number of words to transmit, the word rate for each CSDB label and enter the CSDB words to send onto the data bus. Once the cycle is executed the port is closed and the session is terminated.
