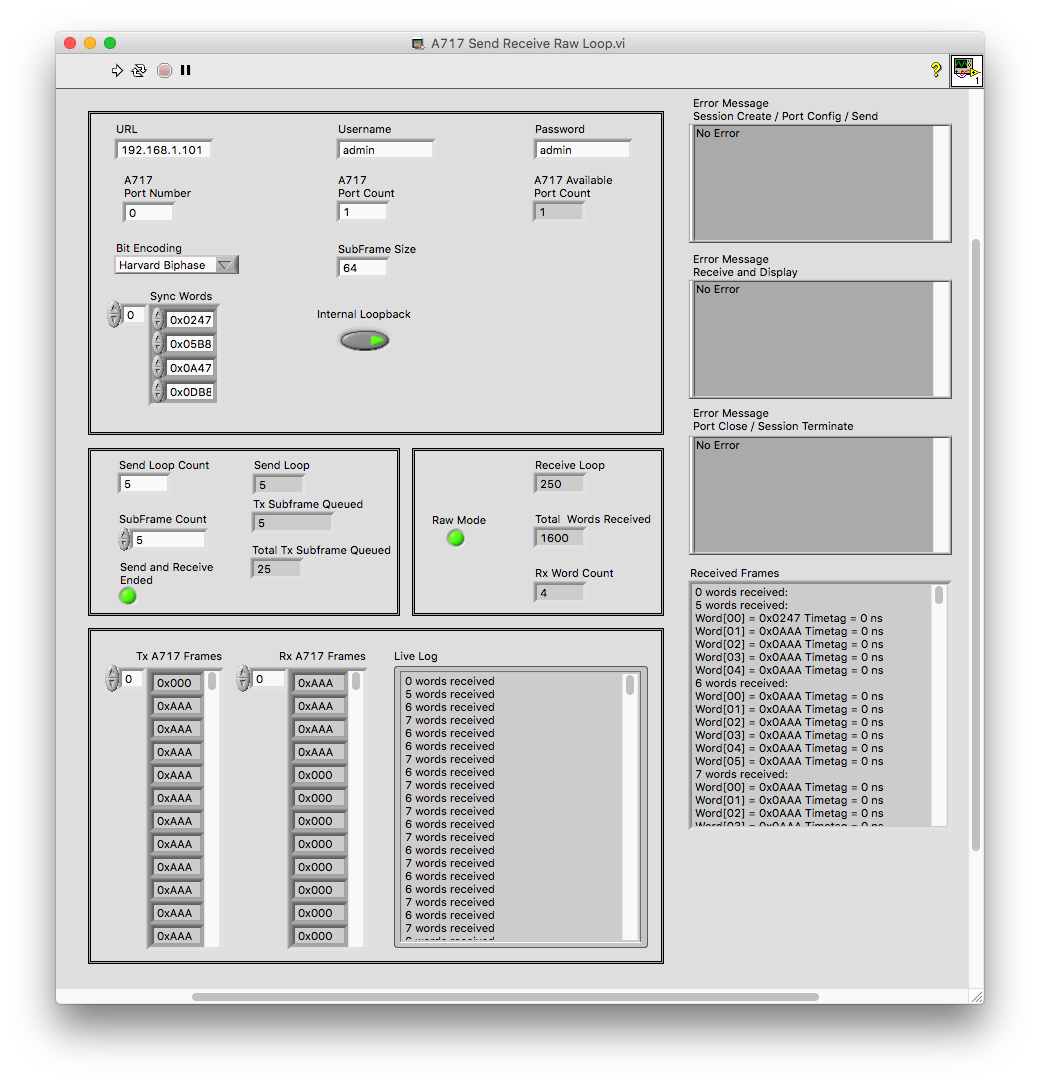

A717 Send Receive Raw Loop.vi
Description
A717 Send Receive Raw Loop demo is used to execute multiple ARINC 717 frame transmit / receive cycles with raw mode activated.
Walkthrough
Once session is started, this demo configures the ARINC 717 port (bit encoding, internal loopback, subframe size and port count).
Before starting the transmit / receive cycle, user needs to select the number of ARINC 717 subframes to transmit, number of transmit cycles and enter the ARINC 717 frames to send onto the data bus. Once the cycles are executed the port is closed and the session is terminated.
