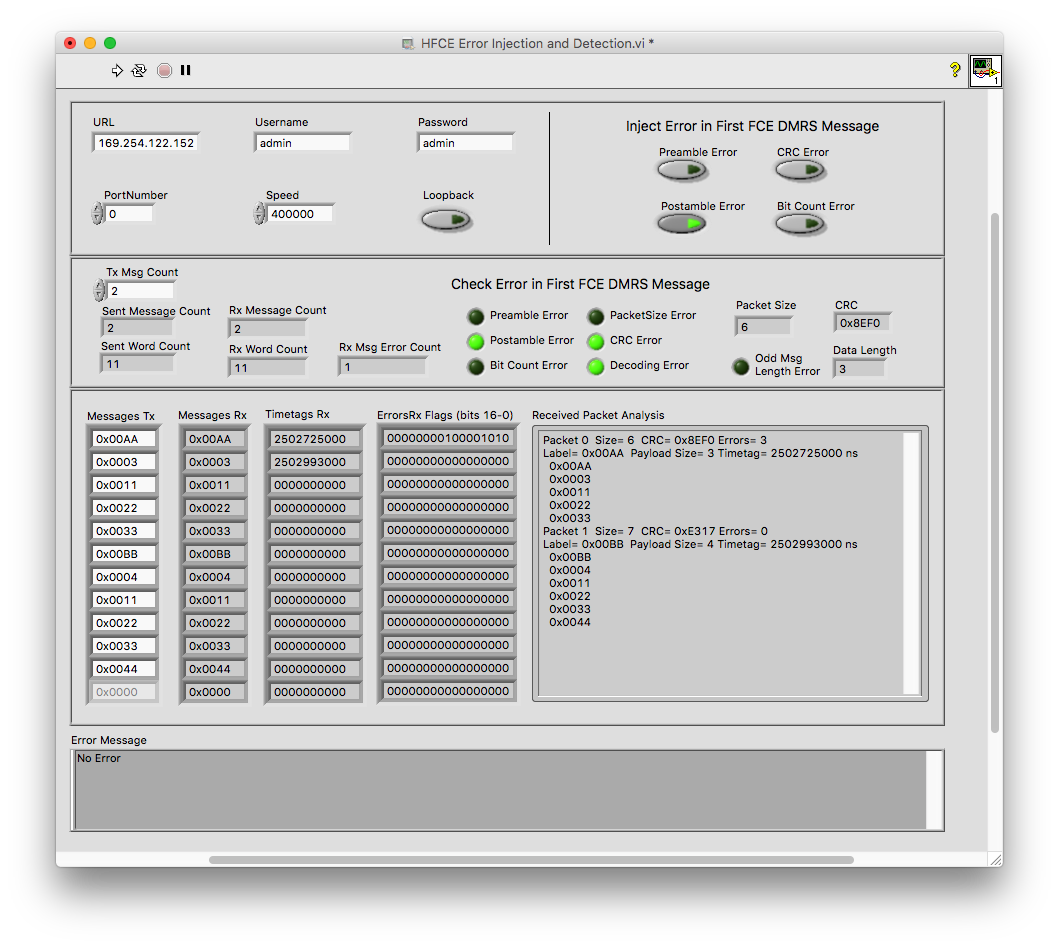

HFCE Error Injection and Detection.vi
Description
HFCE Error Injection and Detection demo is used to execute HFCE message transmit / receive cycle with the possibility: - to inject and detect protocol errors - to get the time tag for each received HFCE message
Walkthrough
Once session is started, this demo configures the HFCE port (speed and internal loopback).
Before starting the transmit / receive cycle, user needs to select the number of HFCE messages to transmit and enter the HFCE messages to send onto the data bus. At the next step, user can inject one or more errors in each HFCE message using the HFCE error array. On receive, HFCE messages are retrieved with time tags and the user can visualize decoded errors found in received messages. Once the cycle is executed the port is closed and the session is terminated.
