A717 Send Receive Raw With

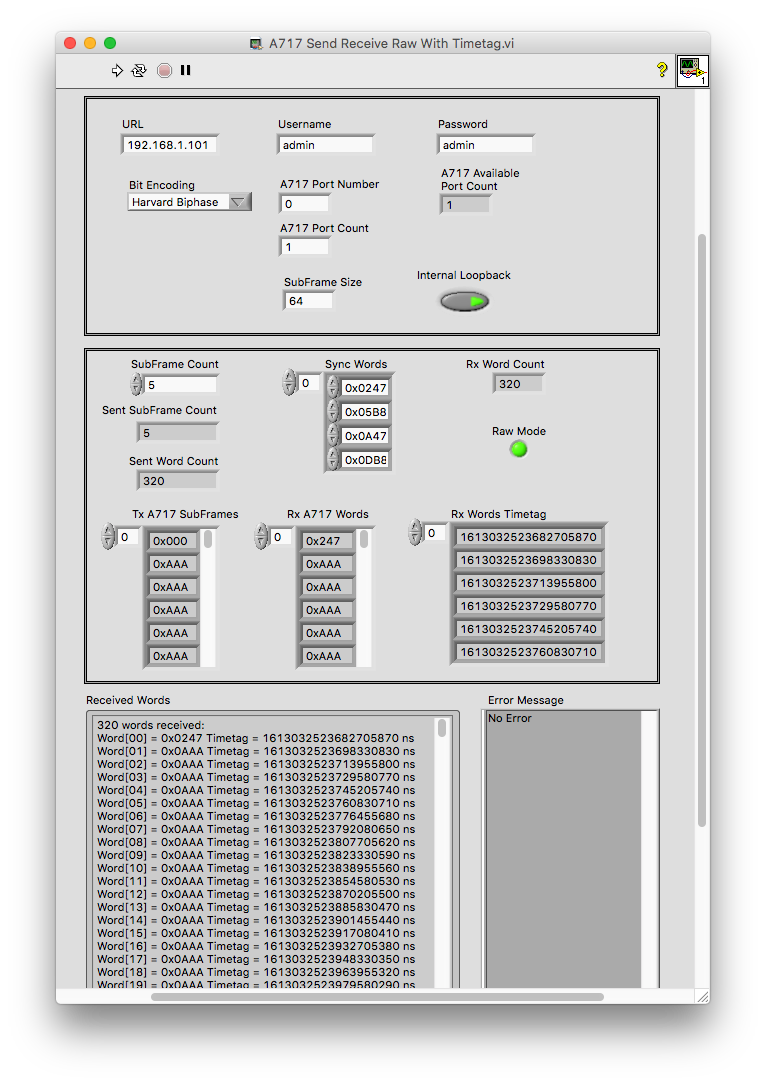

A717 Send Receive Raw With Timetag demo is used to execute ARINC 717 frame transmit / receive cycle with raw mode activated and possibility to get the time tag for each ARINC 717 word received.


Once session is started, this demo configures the ARINC 717 port (bit encoding, synchronization words, internal loopback, subframe size and port count).

Before starting the transmit / receive cycle, user needs to select the number of ARINC 717 subframes to transmit and enter the ARINC 717 frames to send onto the data bus. On receive, ARINC 717 words are retrieved with time tags and displayed. Once the cycles are executed the port is closed and the session is terminated.
