CSDB Schedule Labels Tx Loop.vi
Description
CSDB Schedule Labels Tx Loop demo is used to schedule CSDB message transmit cycle with the possibility to select the message rate for each pericodic CSDB message label. The CSDB Schedule Labels Rx Loop.vi demo is used to read the received periodic CSDB messages.
Walkthrough

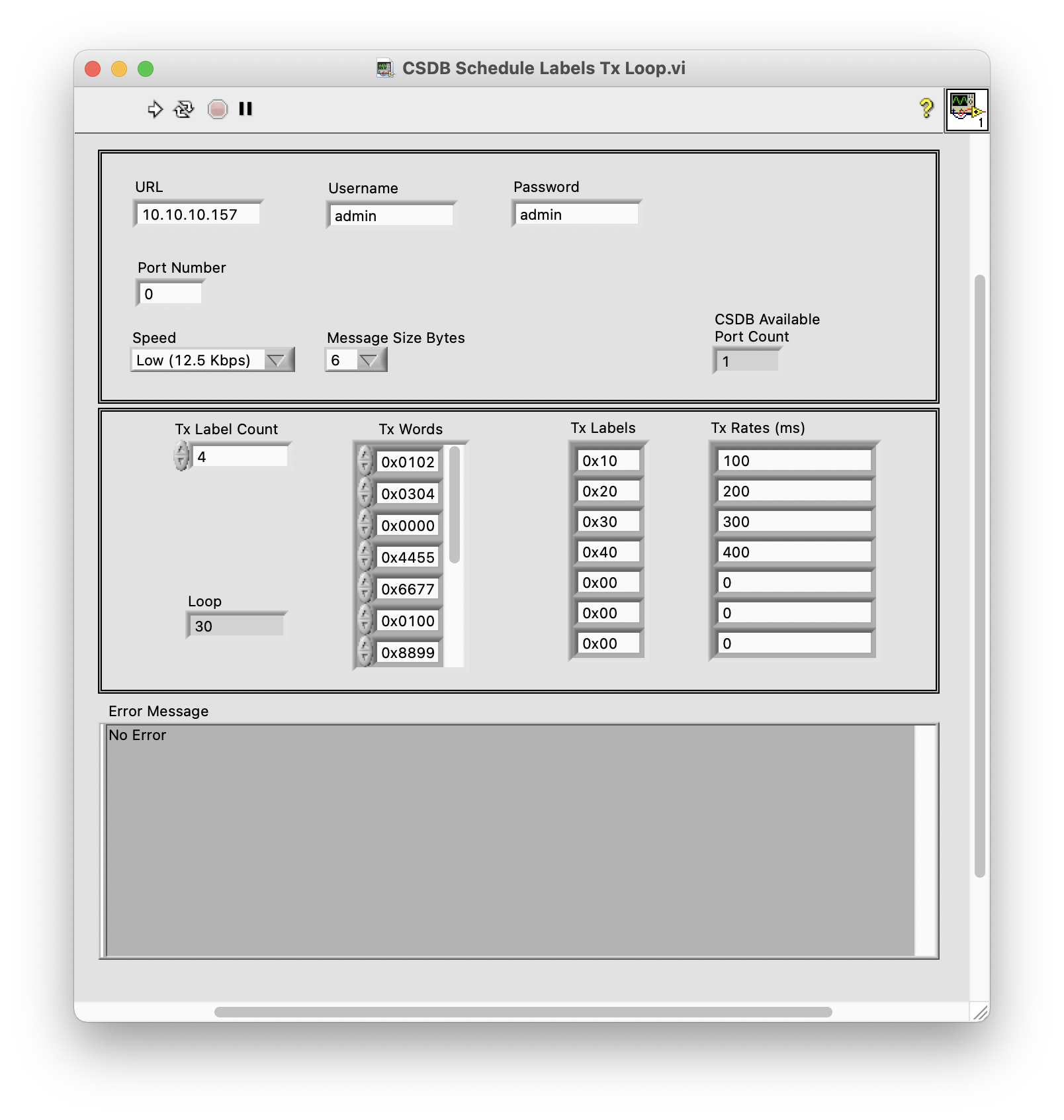

Once session is started, this demo configures the CSDB port features (speed and message size).
Before starting the transmit cycle, user needs to select the number of messages to transmit, the message rate for each CSDB label and enter the CSDB messages to send onto the data bus. Once the cycle is executed the port is closed and the session is terminated.
Running both Schedule Labels Tx and Rx demos
CSDB Schedule Labels Tx Loop.vi and the CSDB Schedule Labels Rx Loop.vi VIs are used to demonstrate sending and receiving periodic CSDB messages using disctincts VIs. The Schedule Labels Rx demo VI will reset the device and must be started before the Schedule Labels Tx VI demo.
1- Open boths CSDB Schedule Labels Tx Loop.vi and CSDB Schedule Labels Rx Loop.vi 2- Start CSDB Schedule Labels Rx Loop.vi 3- Start CSDB Schedule Labels Tx Loop.vi
