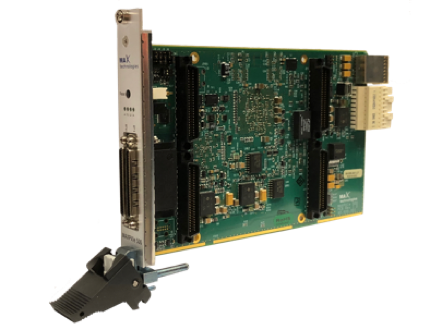

The MAXPXIe 500 carrier board is a high performance, modular multi-protocol PXI-Express solution to your tests and simulation requirements, supporting one or two MAX Technologies mezzanine I/O modules. It is powered by a 800MHz RISC processor and 16MB of shared memory, permitting it to buffer and process communication with the host computer.
The on-board firmware allows scheduling of transmit messages, bridging between protocols, complex label filtering, and triggering of recordings. Received messages are time-tagged with 32-bit or 64-bit sub-microsecond precision, without requiring real-time intervention from the host system. Furthermore, multiple carrier boards can be time-synchronized resulting in unmatched precision in critical real-time applications.
The MAXPXIe 500 is complemented by MAX Technologies’ mezzanine I/O modules available for ARINC 429/561/568/629/708/717, ASYNC RS-232/422/485, CSDB, ASCB, HDLC/SDLC, MIL-STD-1553, Pulse/Frequency generator, Analog and Discrete I/O and more. Moreover, multiple protocols can be implemented and run simultaneously on a single MAXPCIe 502 carrier board and all the data transferred is time-synchronized, even between multiple protocols and multiple boards.
Choice of API
The MAXPXIe 500 carrier board can be controlled with the MX Foundation 4 API. This is the recommended API for a new project.
The MAXPXIe 500 carrier board also support the legacy MX Foundation 3 API. Uses this API for older test bench duplicates
Features
Specifications
Bus type
Number of mezzanine modules supported
Synchronization
Physical dimensions
On-board memory
External connector type and location
Environmental
Reliability MTBF (MIL-HDBK-217 FN2, 30 °C)
Maximum power consumption (carrier board only without mezzanine modules)
Choice of I/O modules
MAX Technologies mezzanine modules covers many avionics databuses and I/O needs including:
Matching cable sets
Standard cables are convenient to connect the module I/Os coming out from the carrier boards to the unit under test. Standard or custom lengths are available for all cables. Browse here to pick the right cables.
ORDERING INFORMATION
MAX-SBC-500E MAXPXIe 500, PXI Express intelligent carrier, 2 module sites, IRIG-B
