At MAX Technologies, we are dedicated to providing the test & measurements and simulation industry with the highest quality general purpose I/O and avionics Databus test equipment. Our expertise in commercial, military and general aviation allows us to offer a wide range of products and services to customers all over the world.
Application domains include:
  - Automated Test Equipments (ATE)
  - Avionics
  - Aerospace
  - Automotive
  - Energy
  - Industrial
  - Telecom
Our families of Databus products offer specific form factors and key performances, but they all share the same API support. This means that your applications can seamlessly communicate with any of the Databus product making it easy for you to switch between different hardware families as needed.
Pick one of the five tiles below to explore further.
PC Cards
Modular hardware
PCI Express / PXI Express / PCI / PXI carriers with plugin modules
Pick the carriers depending on the desired form factor: PCI Express, PXI Express, PCI and PXI.
Then, pick the modules depending on the protocols: ARINC 429, MIL-STD-1553, ARINC 629, Discrete, ASYNC RS-232/422/485, CSDB, HDLC/SDLC, ARINC 717, ARINC 708, ASCB and more.
Last, pick the cables that match selected carriers and modules.
PCIe and PXIe are recommended for new bench developments.
Flex1553 PCIe
State-of-the-art MIL-STD- 1553 PCIe card
Sister to the FlexMulti 1553, PCI Express cards with advanced MIL-STD-1553 technology, along with ARINC 429, ASYNC and Discrete I/Os
PCI Express sister of the FlexMulti 1553, the Flex1553 PCIe comes as a PCI Express card with 1, 2 or 4 dual MIL-STD-1553 channels, 16 Discrete I/Os, 2 Tx + 2 Rx
ARINC 429 channels and 4 Tx + 4 Rx ASYNC RS-422/485/CSDB channels. It connects to a rack mount connectivity panel for robust connectivity and extended lifetime.

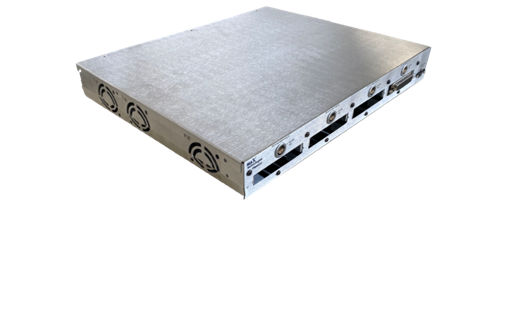

FlexMulti
Integrated hardware
19-in standalone boxes with Ethernet, PCIe, PXIe or USB connectivity and multiple protocols integrated all-in-one
The FlexMulti family is a range of 1U 19-in rack mount devices. They offer Ethernet, USB, PCI Express and PXI Express connectivity as well as stand alone. Across the multiple existing FlexMulti flavors, the family supports ARINC 429, MIL-STD-1553, ARINC 664/AFDX®, ARINC 629, Discrete, ASYNC RS-232/422/485, CAN Bus, CSDB, HDLC, SDLC, ARINC 717, ARINC 708 and more.
FlexMobile 429+
Small Ethernet and USB portable device
ARINC 429 and Discrete to
USB and Ethernet
The FlexMobile 429+ is a convenient portable device running Linux RT on an embedded CPU offering up to 8 Tx and 8 Rx channels of ARINC 429 along with 16 Discrete I/Os with FIFO supporting 28V Avionics level. It connects to a computer or to the network using USB or Ethernet.

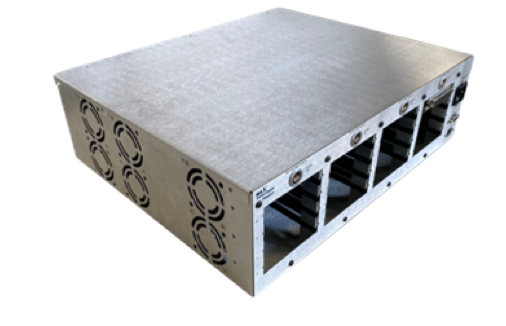

FlexMAX
The game changer!
19-in standalone boxes with slots for up to 16 modules.
Latest additional to our portfolio, the FlexMAX is an integrated chassis with 4 or 16 module I/Os slots. It connects to the network with Ethernet. The FlexMAX chassis can be loaded with the user’s selection of ARINC 429, Discrete I/Os, ADC and DAC modules. More modules are on the way to support the full suite of protocols. Stand Alone capabilities.
Please refer to the software page to check out software control and management options.
Please refer to the service page to learn how MAX Technologies can also deliver custom-made software to control the I/Os.
