MAXIM
Multi-protocol Windows Graphic User Interface
MAXIM addresses the need for various test & measurement solutions that engineers and technicians can easily use and customize to fit their specific requirements.
MAXIM provides multi-protocol support in a single, powerful and easy-to-use software. With MAXIM, there is no need to buy, learn and maintain several different simulation and analysis software solutions. Whether your project involves designing, validation, manufacturing, simulation, testing, maintenance, certification or any other process, you need an integrated and flexible solution.
MAXIM’s “project-based” environment is easy-to-use and ready for expansion to support a variety of T&M communication protocols and legacy I/O.
MAXIM covers a wide range of needs when handling real-time data information such as message scheduling, recording, playback, monitoring, real-time graphics and data analysis.
MAXIM Editions
Multiple MAXIM editions are available depending on required protocols.
CIVIL Edition:
• ARINC 429
• CSDB
• Serial ASYNC RS-232/422/485
• Serial HDLC / SDLC
• ARINC 561
• ARINC 717 FDR
• ARINC 708 Weather Radar
• Analog I/Os
• Discrete I/Os
• CAN Bus
MIL Edition:
• MIL-STD-1553
- ARINC 429
- CSDB
• Serial ASYNC RS-232/422/485
• Serial HDLC / SDLC
• ARINC 561
• ARINC 717 FDR
• ARINC 708 Weather Radar
• Analog I/Os
• Discrete I/Os
• CAN Bus
DATAC Edition:
• ARINC 629
- ARINC 429
- CSDB
• Serial ASYNC RS-232/422/485
• Serial HDLC / SDLC
• ARINC 561
• ARINC 717 FDR
• ARINC 708 Weather Radar
• Analog I/Os
• Discrete I/Os
• CAN Bus
BRJ Edition:
• ASCB
- CSDB
- ARINC 429
• Serial ASYNC RS-232/422/485
• Serial HDLC / SDLC
• ARINC 561
• ARINC 717 FDR
• ARINC 708 Weather Radar
• Analog I/Os
• Discrete I/Os
• CAN Bus
PRO Edition: All of the above protocols.
Features
- Easy setup and automatic detection of multiple ARINC & I/O devices
- Multiple protocol and I/O including MIL-STD-1553, ARINC 429/575, ARINC 561/568, ARINC 629, ASYNC RS-232/422, ASCB, CSDB, HDLC, SDLC, Analog I/O, Discrete I/O and more
- Project-based environment
- Advanced engineering units translation
- Displays multiple channel windows simultaneously
- Single window display of all selected channels
- Multiple parameter graphic display (bar, chart, xy-plot, etc.)
- Bus monitor with messages filter
- Bus simulator with dynamic data generation
- High performance bus recorder with label selection and trigger
- High precision bus playback
- Off-line playback analysis
- Very high precision timing accurate to μs
- Time correlated information across all channels
- JavaScript Scripting
- Full bus load with high channel density support MAXIM’s project-based integrated environment is very easy-to-use and ready for expansion to support a variety of databus and legacy I/O
- MAXIM is supported on Windows 7 to Windows 11

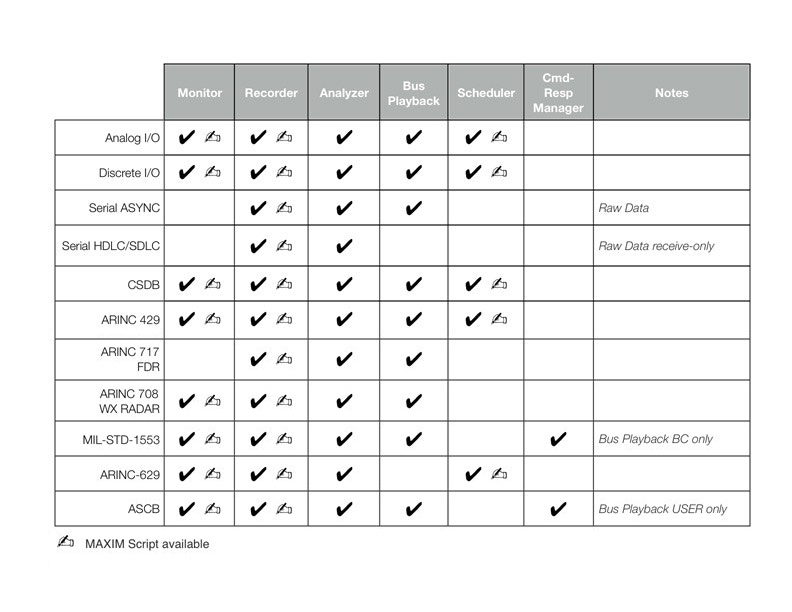

Some features are available on some protocols only. Check the feature matrix for more details.
MAXIM views examples

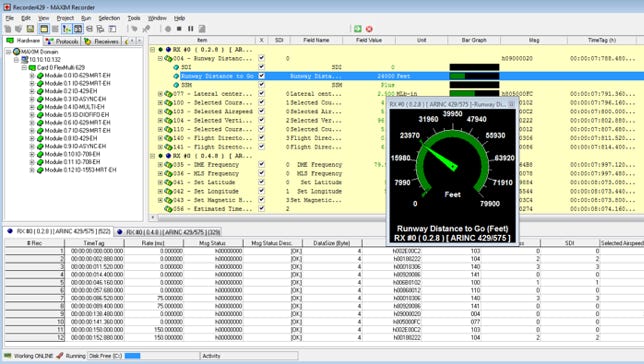

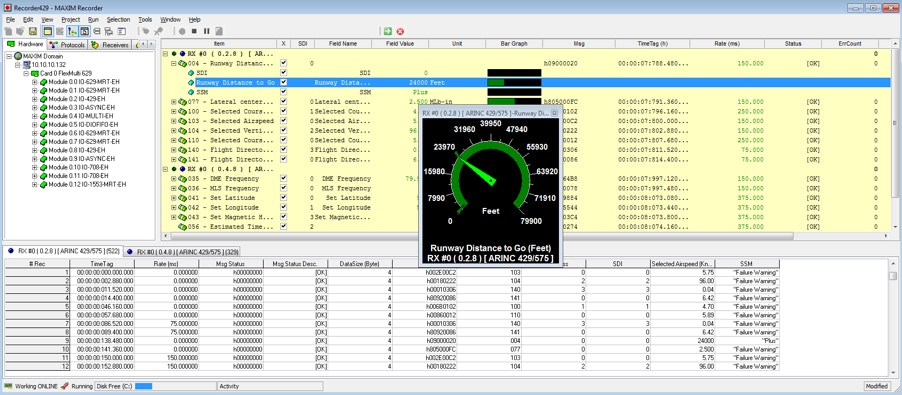

ARINC 429 Bus Recorder

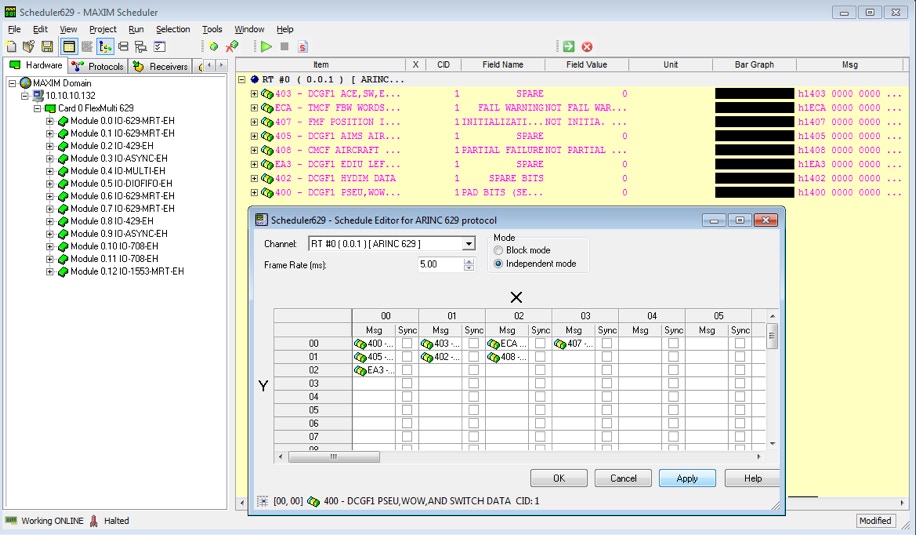

ARINC 629 Bus Scheduler

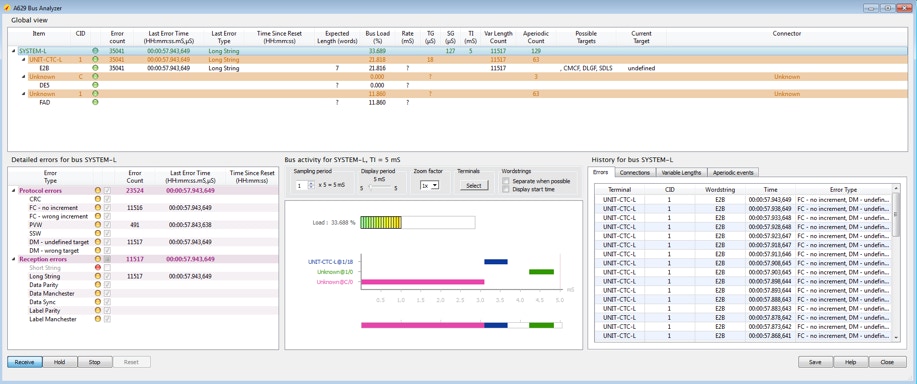

ARINC 629 Bus Analyzer

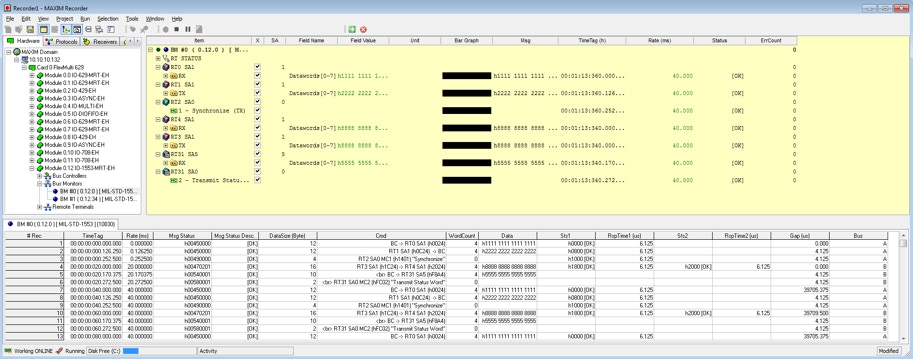

MIL-STD-1553 Bus Recorder

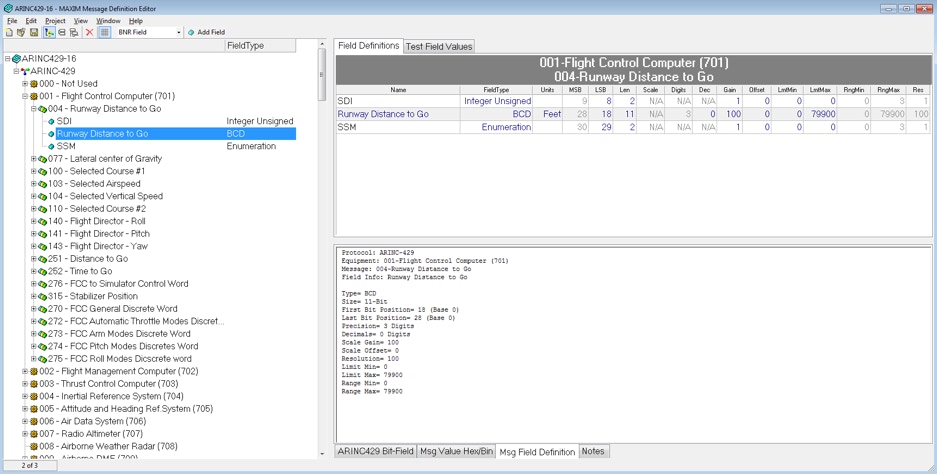

Engineering Unit Definition Editor
Ordering information
MAXIM 4, when ordered with Series-500 cards and mezzanine modules or Flex devices
MAX-SW-4200-N MAXIM CIVIL Edition
MAX-SW-4300-N MAXIM MIL Edition
MAX-SW-4400-N MAXIM DATAC Edition
MAX-MAXIM-777 MAXIM DATAC Edition with ARINC 629 Bus Analyzer
MAX-SW-4500-N MAXIM BRJ Edition
MAX-SW-4600-N MAXIM PRO Edition
MAX-MAXIM-777-PRO MAXIM DATAC Edition with ARINC 629 Bus Analyzer
MAXIM 2, when ordered with Series-400 / Series-500 cards and mezzanine modules
MAX-SW-4200 MAXIM CIVIL Edition
MAX-SW-4300 MAXIM MIL Edition
MAX-SW-4400 MAXIM DATAC Edition
MAX-SW-4500 MAXIM BRJ Edition
MAX-SW-4600 MAXIM PRO Edition
MAXIM 4, when ordered alone (no cards and mezzanine modules or no Flex device on the order)
MAX-SW-5200-N MAXIM CIVIL Edition
MAX-SW-5300-N MAXIM MIL Edition
MAX-SW-5400-N MAXIM DATAC Edition
MAX-MAXIM-777-5 MAXIM DATAC Edition with ARINC 629 Bus Analyzer
MAX-SW-5500-N MAXIM BRJ Edition
MAX-SW-5600-N MAXIM PRO Edition
MAX-MAXIM-777-PRO-5 MAXIM DATAC Edition with ARINC 629 Bus Analyzer
MAXIM 2, when ordered alone (no cards and mezzanine modules on the order)
MAX-SW-5200 MAXIM CIVIL Edition
MAX-SW-5300 MAXIM MIL Edition
MAX-SW-5400 MAXIM DATAC Edition
MAX-SW-5500 MAXIM BRJ Edition
MAX-SW-5600 MAXIM PRO Edition
Note: The Series-500 cards (MAXPCIe 502 and MAXPXIe 500) are supported both by MAXIM 4 and MAXIM 2. We recommend to use MAXIM 4 for new developments / new designs and MAXIM 2 when backward compatibility with existing MAXIM projects developed with the Series-400 cards is needed. If you intend to use the Series-500 cards with the MX Foundation API as well, you need to pick MAXIM 4 if working with MX Foundation 4 and MAXIM 2 if working with MX Foundation 3.
