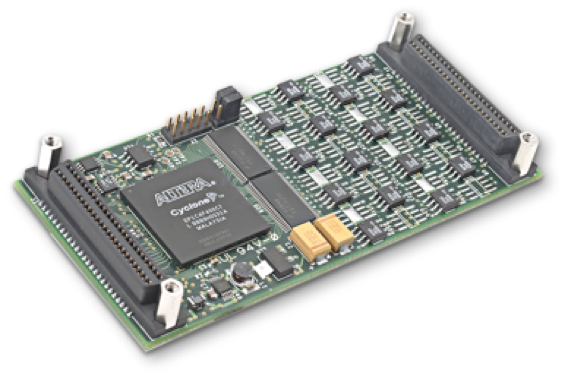

IPM-429

IPM-429-ELB

MIL-STD-1553

• MIL-STD-1553 A/B
• IRIG-B AM, Digital and 1-PPS inputs
• 16 general-purpose discrete I/O
• One or Two dual redundant channels provide simultaneous support of 62-RT, 2-BC and 2-BM
• Microsecond precise Tx and Rx timetags
• Error injection and detection (sync, Manchester, and parity)
• Includes variable voltage 1553 transceivers
• Optional EBR (10 Mbps over RS-485)
• Optional MIL-STD-1760 CRC
• Reliability MTBF (MIL-HDBK-217 FN2, 30 °C) 527,675 hours
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

IPM-1553-MRT

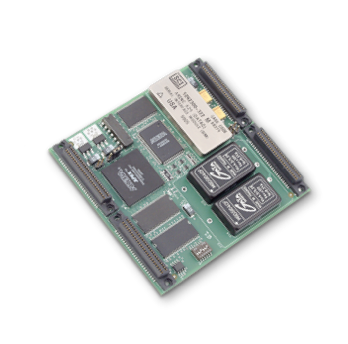

ARINC 629

• Can emulate up to 120 Remote Terminals (RT) with programmable CID per RT and on a per-message basis.
• Error Injection (Parity, CRC and FC errors)
• Error Detection (Parity, CRC and Manchester errors)
• Supports all normal modes in transmission and reception (periodic, aperiodic, C, block, independent, alternate)
• XPP configuration
• 32-bit bus time-stamp on transmitted and received words
• Full bus monitoring with 32 KB of FIFO (per word or message time-tag)
• Programmable TI, TG and SG
• Transmit/Receive Speed: 2 Mbps
• IRIG-B AM, Digital and 1-PPS inputs
• Reliability MTBF (MIL-HDBK-217 FN2, 30 °C) 527,675 hours
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

ARINC 708 - Weather Radar

• ARINC 708 weather radar protocol support
• Two independent transmit and receive channels
• Microsecond precise Tx and Rx timetags
• Internal loopback capability
• Error injection and detection (sync, bit rate, Manchester, and word length)
• 16 Discrete I/O lines
• 256 word Tx FIFO and 1024 word Rx FIFO
• IRIG-B AM, Digital and 1-PPS inputs
• Reliability MTBF (MIL-HDBK-217 FN2, 30 °C) 605,075 hours
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

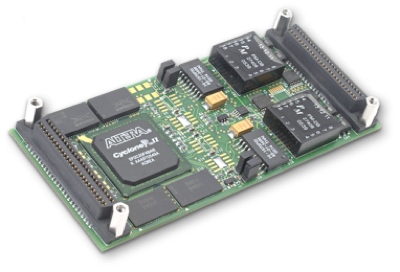

IPM-708

CSDB

• 8TX and 8RX CSDB or Serial ASYNC RS-422 channels
• Configurable data rate per channel between 305 bps and 4 Mbps
• 512 ASYNC word FIFO per channel
• Precision of one microsecond
• Complete independent channel configuration and operation
• Parity Error detection, configurable number of stop bits
• 8 discrete differential lines independently configurable to input or output
• IRIG-B signal input
• Reliability MTBF (MIL-HDBK-217 FN2, 30 °C) 1,254,404 hours
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

IPM-CSDB

SERIAL ASYNC RS-422/485

• 8TX and 8RX Serial ASYNC RS-422/485 channels
• Configurable data rate per channel between 305 bps and 4 Mbps
• 512 ASYNC word FIFO per channel
• Precision of one microsecond
• Complete independent channel configuration and operation
• Parity Error detection, configurable number of stop bits
• 8 discrete differential lines independently configurable to input or output
• IRIG-B signal input
• Reliability MTBF (MIL-HDBK-217 FN2, 30 °C) 1,254,404 hours
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

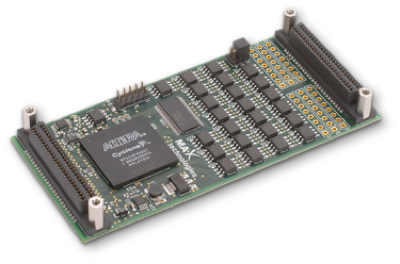

IPM-ASYNC

DISCRETE

• Up to 48 Open Collector Input/Output channels on a single size mezzanine module
• Up to 192 Open Collector Input/Output channels on one single carrier board
• Each 1/0 Independently configurable as Input or Output
• Input threshold level set at 8.5 Volts with a ~1 Volts hysteresis
• Each Output monitored by a separate Input feedback pin
• Each Input Individually programmed to generate an Interrupt on an edge or a logic level
• 32-Dit one microsecond resoluon locallmer
• Two 32-blt timetag registers avallable to track transitions on any of the 48
• I/O lines)
• Rellability MTBF (MIL-HDBK-217 FN2, 30 °C) 1,153,800 hours
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

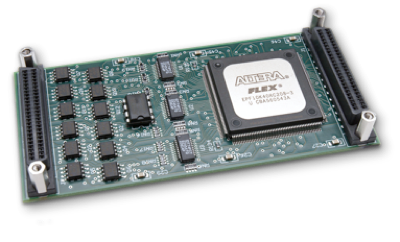

IPM-DIO-48

IPM-DIO-48-FIFO

DIFFERENTIAL DISCRETE

• 24 differential RS-422 I/O on a single size mezzanine module
• Up to 96 differential RS-422 I/O on one single carrier board
• Each I/O independently configurable as Input or Output
• Each Input individually programmed to generate an interrupt on an edge or a logic level
• 128 word FIFO buffer per line
• 32-bit one microsecond resolution local timer
• Two 32-bit timetag registers available to track transitions on any of the 24 I/O lines
• IRIG-B Digital, AM and 1-PPS inputs)
• Reliability MTBF (MIL-HDBK-217 FN2, 30 °C) 1,254,404 hours
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

IPM-DIO-24-DIFF

ASCB

• Avionics Standard Communication Bus (ASCB) protocol support 4 HDLC transceivers
• Provides simultaneous support of 128 users, a BC, as well as 4 Bus Monitors (BM)
• Microsecond precise Tx and Rx timetags
• Error injection and detection (CRC, Manchester, Parity)
• 16 Discrete I/O lines (DIO) independently selectable to input/output
• Conforms to the ASCB electrical requirements
• Simulates the maximum number of users allowable on an ASCB databus while simultaneously providing BC and BM capabilities
• IRIG-B input
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

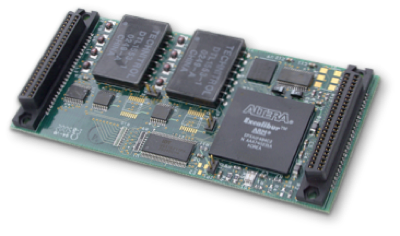

IPM-ASCB

ANALOG TO DIGITAL (ADC)

• 16 differential or 32 single-ended inputs
• Switch-selectable input range: ±2.5V, ±5V, ±10V, 0-2.5V, 0-5V and 0-10V
• Software-programmable gain (per channel): 1X, 2X, 4X and 8X
• 16-bit A/D resolution
• 32-bit, 1 microsecond time-stamp
• Sampling Rate:
• 1 channel (max.): 250 KHz (4μs/conversion)
• 16 channels (differential): 15.6 KHz (64μs/16 ch)
• 32 channels (single-ended): 7.8 KHz (128μs/32 ch)
• Input over voltage protection
• With power ON: Vss –20V to Vpp 40V
• With power OFF: Vss –35V to Vpp 55V
• IRIG-B Digital, AM and 1-PPS inputs)
• Reliability MTBF (MIL-HDBK-217 FN2, 30 °C) 468,917 hours
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

IPM-ADC

DIGITAL TO ANALOG

IPM-DAC

• 8 output channels, differential or single-ended
• Switch-selectable input range: ±5V, ±10V
• Software-programmable calibration slope
• 12-bit D/A resolution
• 32-bit, 1 microsecond time-stamp
• Reliability MTBF (MIL-HDBK-217 FN2, 30 °C) 2,683,123 hours
• Standard Operating Temperature: 0°C to 70°C
• Relative Humidity for operation: 0 to 95% (non-condensing)

Ordering information

MAX-IP-200132      IPM-D/A Digital to Analog IP Module with 8 Analog Outputs - 12 bit resolution

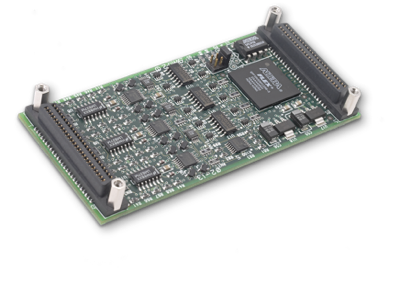

ARINC 561 / 568

• 4TX + 4RX ARINC 561/568 channels
• Configurable data rate per channel 3906 bps to 15625 bps
• Precision of one microsecond
• Independent channel configuration and operation
• Parity Error and Short Word Error detection

IPM-561/568
