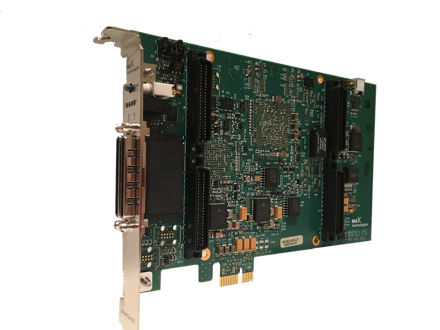

The MAXPCIe 502 carrier board is a high performance, modular multi-protocol PCI-Express solution to your tests and simulation requirements, supporting one or two MAX Technologies mezzanine I/O modules. It is powered by a 800MHz RISC processor and 16MB of shared memory, permitting it to buffer and process communication with the host computer.

The on-board firmware allows scheduling of transmit messages, bridging between protocols, complex label filtering, and triggering of recordings. Received messages are time-tagged with 32-bit or 64-bit sub-microsecond precision, without requiring real-time intervention from the host system. Furthermore, multiple carrier boards can be time-synchronized resulting in unmatched precision in critical real-time applications.

The MAXPCIe 502 is complemented by MAX Technologies’ mezzanine I/O modules available for ARINC 429/561/568/629/708/717, ASYNC RS-232/422/485, CSDB, ASCB, HDLC/SDLC, MIL-STD-1553, Pulse/Frequency generator, Analog and Discrete I/O and more. Moreover, multiple protocols can be implemented and run simultaneously on a single MAXPCIe 502 carrier board and all the data transferred is time-synchronized, even between multiple protocols and multiple boards.

Choice of API

The MAXPCIe 502 carrier board can be controlled with the MX Foundation 4 API. This is the recommended API for a new project.

The MAXPCIe 502 carrier board also support the legacy MX Foundation 3 API. Uses this API for older test bench duplicates


  • Multi protocol support ARINC 429/561/568/629/708/717 CSDB, ASCB, MIL-STD-1553, ASYNC RS-232/422/485, HDLC/SDLC and more
  • Multi-I/O support: Analog I/O, Discrete I/O, Pulse and Frequency generator and more
  • Runs multiple protocols and I/O simultaneously
  • Powered by a 800 MHz RISC CPU
  • Holds up to two MAX Technologies mezzanine modules
  • 16 MB of shared memory, for data transfer buffers
  • 32-bit or 64-bit sub-microsecond precision time-tags
  • Provides accurate time synchronization between protocols and I/O
  • On-board message scheduling, buffering, filtering, and monitoring off-load the host computer
  • High channel I/O density


Bus type

  •   PCI-Express x1 Gen1 Standard

Number of mezzanine modules supported

  •   2 single or 1 double


  • SYNC IN/OUT: Synchronization between multiple boards

Physical dimensions

  •   PCI Express short card
  •   98 mm x 162 mm

On-board memory

  •   64 MB DRAM

External connector type and location

  •   100 I/O lines on two VHDCI 68-pin connectors on front face plate


  •   Standard Operating Temperature: 0°C to 70°C
  •   Storage Temperature: -55°C to 100°C
  •   Relative Humidity for operation: 0 to 95% (non-condensing)

Reliability MTBF (MIL-HDBK-217 FN2, 30 °C)

  •   241,500 hours

Maximum power consumption (carrier board only without mezzanine modules)

  •   5 Watts

Choice of I/O modules

MAX Technologies mezzanine modules covers many avionics databuses and I/O needs including:

Matching cable sets

Standard cables are convenient to connect the module I/Os coming out from the carrier boards to the unit under test. Standard or custom lengths are available for all cables. Browse here to pick the right cables.


MAX-SBC-502E    MAXPCIe 502, PCI Express intelligent carrier, 2 module sites, IRIG-B
