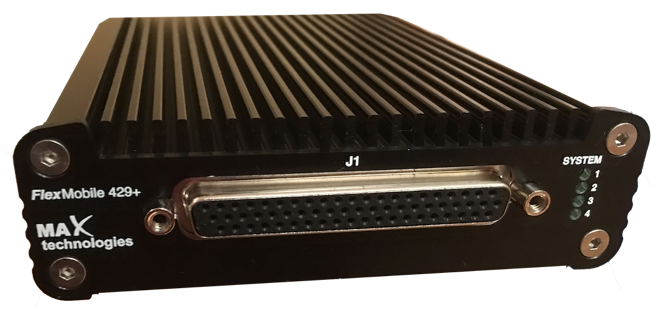

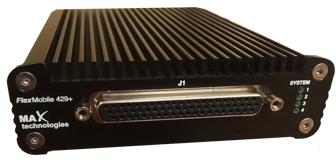

The FlexMobile 429+ is a lightweight and portable device that supports ARINC 429 and Discrete, with precise timing and flexible programming. It comes with various ARINC 429 options, 28V open-collector Discrete Inputs/Outputs with software-selectable directions and Ethernet/USB connectivity. It also has extensive error injection and detection capabilities, 10 ns timing accuracy, and support for various software interfaces such as Multibus, MX-Foundation 4 API, MAXIM GUI, and MAXIM Air GUI. The device also supports synchronization with other FlexMobile devices and IRIG-B Sync.
Additionally, the FlexMobile 429+ also includes an option including 4 Tx with parametric voltage up to +/- 6.5V per pin, giving users even greater flexibility in their programming.
The FlexMobile 429+ allows users to operate the device on the go by connecting it to any USB laptop, or remotely using Ethernet connectivity, providing convenient and flexible options for testing and analysis.
FlexMobile 429+
FMOB-A44-U
FlexMobile 429+
FMOB-A88-U
FlexMobile 429+
FMOB-A844-P-U
Specifications
Bus type
Synchronization
Physical dimensions and weight
External connector type
Environmental
Electrical
Power consumption
Features
The FlexMobile 429+ instruments can be controlled using Ethernet, allowing distributed devices on a LAN to be accessed by client computers on the network. Also, you can setup a network with a Wi-Fi hub and access the FlexMobile 429+ device wirelessly.
The FlexMobile 429+ instruments can also be controlled using USB 2 or USB 3. USB is the most common desktop and laptop port that you’ll see. This is the most straight forward choice for working on the go (Field Applications).
The MX Foundation API library provides high-level abstraction of hardware and allows to easily control mixed protocols and I/O modules on one or multiple carrier boards. MX Foundation is available for Windows, Linux and other operating systems. Read more…
Multibus VI is a powerful and easy-to-use software tool that enables you to develop and debug avionics systems using ARINC 429 and other protocols. By pairing the FlexMobile 429+ with Multibus VI, you'll have a complete solution for designing, simulating, and testing your avionics systems with confidence. With LabVIEW’s intuitive graphical user interface and extensive set of features, Multibus VI makes it easy to create scenarios and perform analysis of your system's performance.
