Flex1553 PCIe
MIL-STD-1553
1553 EBR (Enhanced Bit rate, 10 Mbps)
ARINC 429
ASYNC RS-422/485 / CSDB
Discrete I/Os
FX1553-1
1 dual redundant bus
-
2 Tx and 2 Rx
4 Tx and 4 Rx
16 Tx and 16 Rx
FX1553-2
2 dual redundant bus
-
2 Tx and 2 Rx
4 Tx and 4 Rx
16 Tx and 16 Rx
FX1553-4
4 dual redundant bus
4 Tx and 4 Rx, shared with ASYNC ports
2 Tx and 2 Rx
4 Tx and 4 Rx
16 Tx and 16 Rx

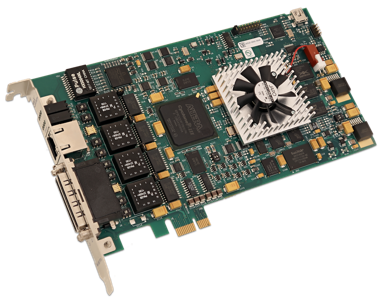

The Flex1553-PCIe is a PCI Express card supporting 1, 2 or 4 Dual Redundant MIL-STD-1553 buses, 1553 Enhanced Bit Rate, ARINC 429 and Discrete with precise timing and flexible programming. The PCI Express card with a robust 19-inch connect panel for easy and long-lasting connectivity.
Breakout box I/O connectors

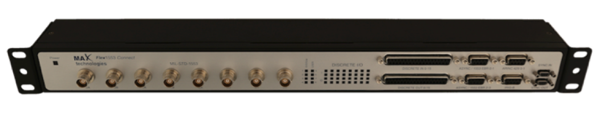

The Flex1553 PCIe card interconnects with the connect panel. The connect panel is a 1U ruggedized rack-mountable panel that provides eight MIL-1553 Twinax BNC connectors. It also provides large DB connectors for easy user cabling of ASYNC, ARINC 429, Single or Differential Discrete I/O, Sync in/out and IRIG-B signals.
FEATURES
MIL-STD-1553 buses
- 1 or 2 or 4 multifunctions dual-redundant MIL-STD-1553 buses
- Concurrent BC/BM/RTs
- 4 Tx / 4 Rx MIL-STD-1553 EBR (Enhanced Bit Rate) at 10 Mbps (FX1553-4 only)
- MIL-STD-1760 CRC (FM1553-4)
- Precise 64-bit timetag
- 12.5 nanosecond time-tag on MIL1553 and EBR
- Advanced transaction counters and error counters
- Discrete output line triggered on error
- Late Update detection
- BC/BM/RTs started time
- Major frame start and stop on time-tag
- Frame rate can be controlled by an external clock
- Conditional branch to minor frame
- Conditional branch on Discrete I/O trigger
- Minor frame rate up to 6553 ms
- Minor frame sent on modulo
- Minor frame repeat count
- Minor frame duration (independent for each minor frame)
- Message sent on modulo (1 to 256)
- Message sent on gap or on fixed delay
- Message command real-time update
- Error injections:
- Command/status address override
- Bit count error
- Sync pattern error
- Transmit on alternate bus
- Transmit on both buses
- Parity error
- Word count error
- Manchester error
- Supersed command
- Force RT to not respond
- Force RT to respond
- Word gap error in 1/8 bit time
- Do not send command
- Error detections:
- Manchester error
- Parity error
- Extra bit error
- RT response too fast
- Data unexpected error
- Bad sync error
- Data length error
- Status address error
- RT-RT data error
ARINC 429 dedicated ports
4 ARINC 429 ports (2Tx + 2 Rx)
Programmable Bit rate from 4 to 125 kbps
Error injections:
Parity error
Bit count error
Error detection:
Parity error
Precise 64-bit timetag
Serial ASYNC RS-422/485 dedicated ports
- 8 Serial ASYNC RS-422/485 ports (4Tx + 4 Rx)
- 200 bps to 10 Mbps
- Support for Rockwell-Collins CSDB protocol
- Error injections:
- Parity error
- Bit count error
- Error detections:
- Parity error
- Stop bit error
- precise 64-bit time tag
Discrete dedicated I/O ports
- 32 Discrete I/O with FIFO and timetags dedicated ports (16 Tx + 16 Rx)
- Support for differential RS-422, single TLL or 28V avionic discrete
- ARINC 763 compatible
- Up to 10 Mbps
Synchronisation I/Os
- IRIG-B
- Input B00X, B12X
- Output B007
- Device-to-Device Sync I/O
SPECIFICATIONS
Bus type
- PCI-Express x1 Gen1 Standard
Synchronization
- SYNC IN/OUT: Synchronization between multiple boards
- IRIG-B IN/OUT
Physical dimensions
- PCI Express short card
- 98 mm x 162 mm
External connector type and location
- Two VHDCI 68-pin connectors on front face plate
Environmental
- Standard Operating Temperature: 0°C to 70°C
- Storage Temperature: -55°C to 100°C
- Relative Humidity for operation: 0 to 95% (non-condensing)
Reliability MTBF (MIL-HDBK-217 FN2, 30 °C)
- 241,500 hours
Maximum power consumption
- 12 Watts
ORDERING INFORMATION
FX1553-1
FX1553-2
FX1553-4
