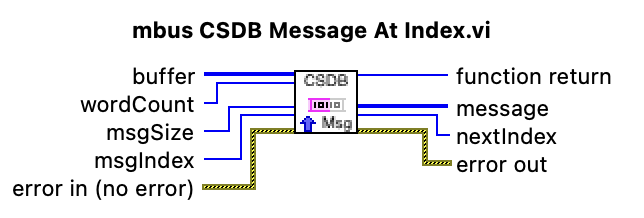

mbus CSDB Message At Index.vi
Description
CSDB Message At Index is used to extract a CSDB message out from an array of CSDB messages. Each message is an array of three or four 16-bit words.
Refer to CSDB message format for description of the Multibus CSDB message format.
| Parameters | ||
|---|---|---|
| error in | in | error conditions that occur before entering the function |
| buffer | in | array of 16-bit words containing the CSDB messages |
| wordCount | in | number of words in the array |
| msgSize | in | CSDB message size in bytes (6 or 8 bytes) |
| msgIndex | in | word index of the CSDB message to extract |
| message | out | 16-bit words array containing the CSDB message at index |
| nextIndex | out | index of the next CSDB message in the array |
| error out | out | error information |
| function return | out | function execution status |
Considering the following CSDB Message array populated with three messages. The array contains messages at words index 0, 3 and 6. The array wordCount is 9.
| CSDB word index | 16-bit word |
|---|---|
| Word #0 | 0x0011 |
| Word #1 | 0x2233 |
| Word #2 | 0xC1E1 |
| Word #3 | 0x4455 |
| Word #4 | 0x6677 |
| Word #5 | 0xC2E2 |
| Word #6 | 0x8899 |
| Word #7 | 0xAABB |
| Word #8 | 0xC3E3 |
Calling mbus CSDB Message At Index with index input parameter to 0 will return the fisrt message. The nextIndex output parameter will return the value 3, the index of the next message.
| Message #0 (at word Index 0) | 16-bit words |
|---|---|
| Word #0 | 0x0011 |
| Word #1 | 0x2233 |
| Word #2 | 0xC1E1 |
Status is 0xC1 Label is 0xE1
Calling mbus CSDB Message At Index with index input parameter to 3 will return the second message. The nextIndex output parameter will return the value 6, the index of the next message.
| Message #1 (at word Index 3) | 16-bit words |
|---|---|
| Word #0 | 0x4455 |
| Word #1 | 0x6677 |
| Word #2 | 0xC2E2 |
Status is 0xC2 Label is 0xE2,
Calling mbus CSDB Message At Index with index input parameter to 6 will return the second message. The nextIndex output parameter will return the value 9, the index of the next message in the array.
| Message #2 | 16-bit words |
|---|---|
| Word #0 | 0x8899 |
| Word #1 | 0xAABB |
| Word #2 | 0xC3E3 |
Status is 0xC3 Label is 0xE3,
Calling mbus CSDB Message At Index with index input parameter to 9 will return an error.
Availability
Available in Multibus VI 1.3 and later.
