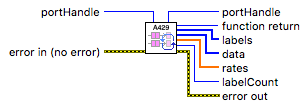

mbus A429 Receive Labels.vi
Description
Sampling receive service.
A429 Receive Labels function receives labelCount of ARINC 429 words from the data bus at rates selected by A429 Send Labels At Rates function.
ARINC 429 words are split into data and labels
| Parameters | ||
|---|---|---|
| error in | in | error conditions that occur before entering the function |
| portHandle | in | reference to the configured port |
| portHandle | out | reference to the configured port |
| labelCount | out | number of ARINC 429 words received from the data bus |
| labels | out | ARINC 429 labels received from the data bus |
| data | out | ARINC 429 data received from the data bus |
| rates | out | ARINC 429 word rates in milliseconds with microsecond accuracy |
| error out | out | error information |
| function return | out | function execution status |
Handle parameters are available as input and output. Output is a copy of the input and may be used to daisy chain successive VIs and reduce wire density.
Availability
Available in Multibus VI 1.0 and later.
See Also
mbus A429 Send Labels At Rates.vi mbus A429 Update Label.vi mbus A429 Update Labels.vi
