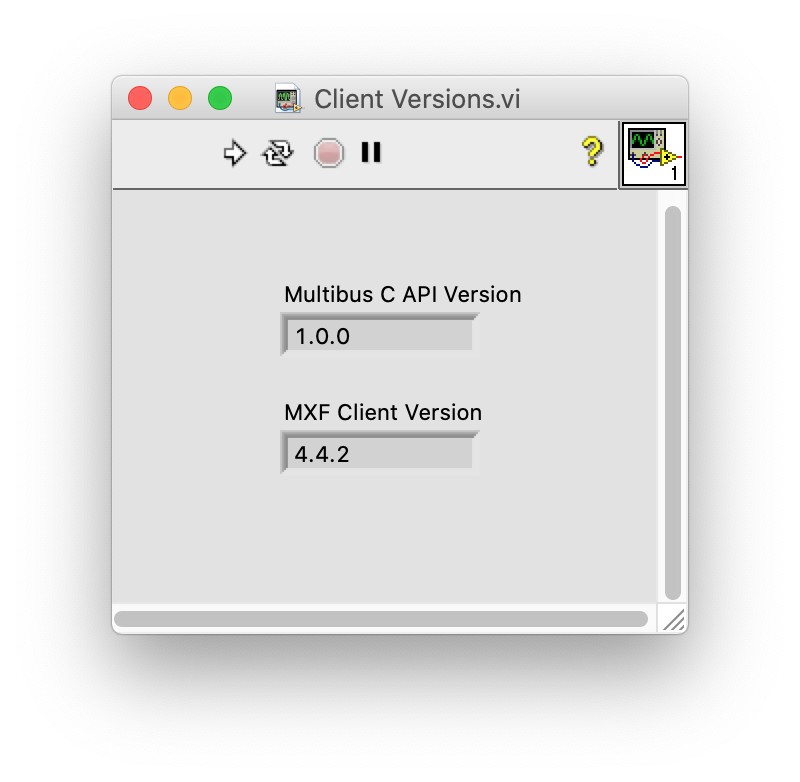

Client Versions.vi

Description

Client Versions demo is used to provide:
- MX Foundation Client API version
- Multibus API version

See Also

Client and Server Versions.vi
