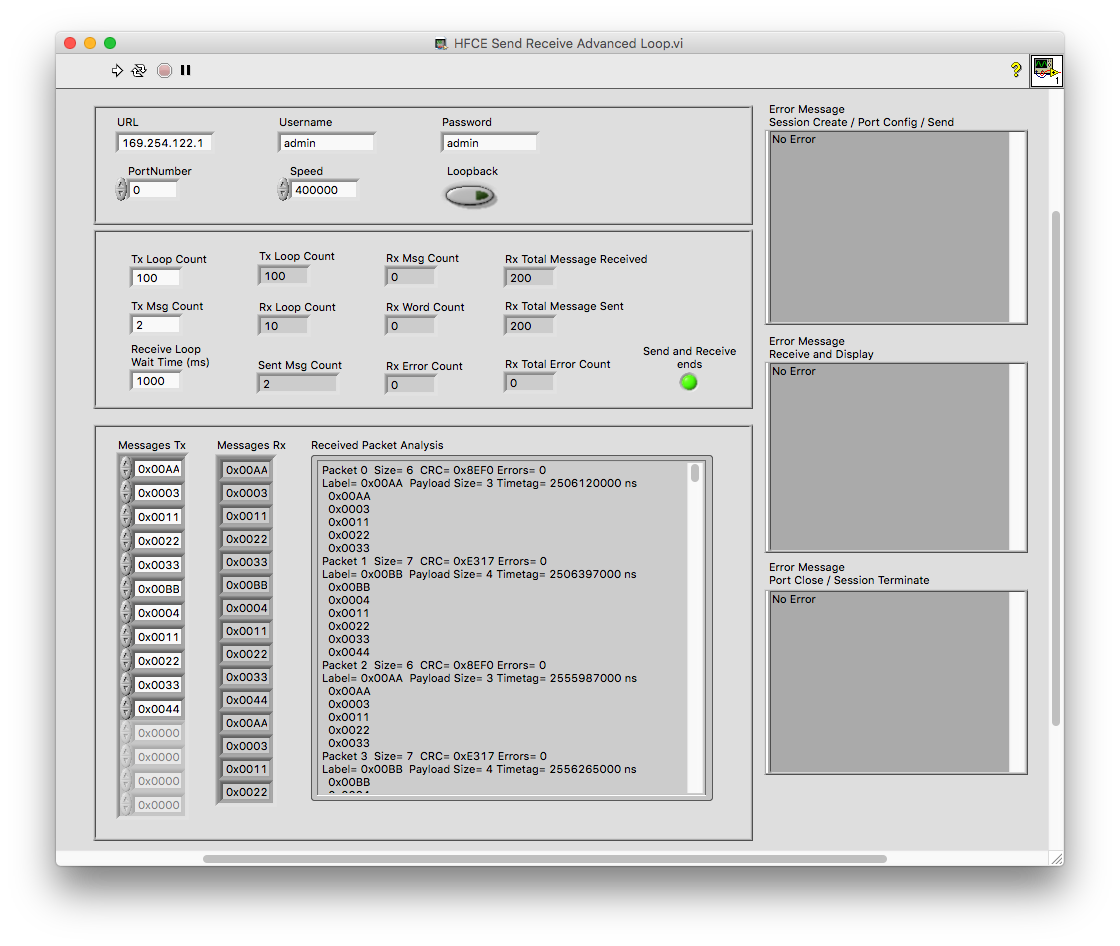

HFCE Send Receive Advanced Loop.vi

Description

HFCE Send Receive Advanced Loop demo is used to execute multiple HFCE message transmit / receive cycles with the possibility to get the time tag for each received HFCE message

Walkthrough

Once session is started, this demo configures the HFCE port (speed and internal loopback).

Before starting the transmit / receive cycle, user needs to select the number of HFCE messages to transmit, number of transmit cycles, wait time between receive cycles and enter the HFCE messages to send onto the data bus. On every receive cycle, HFCE messages are retrieved with time tags. Once the cycles are executed the port is closed and the session is terminated.
