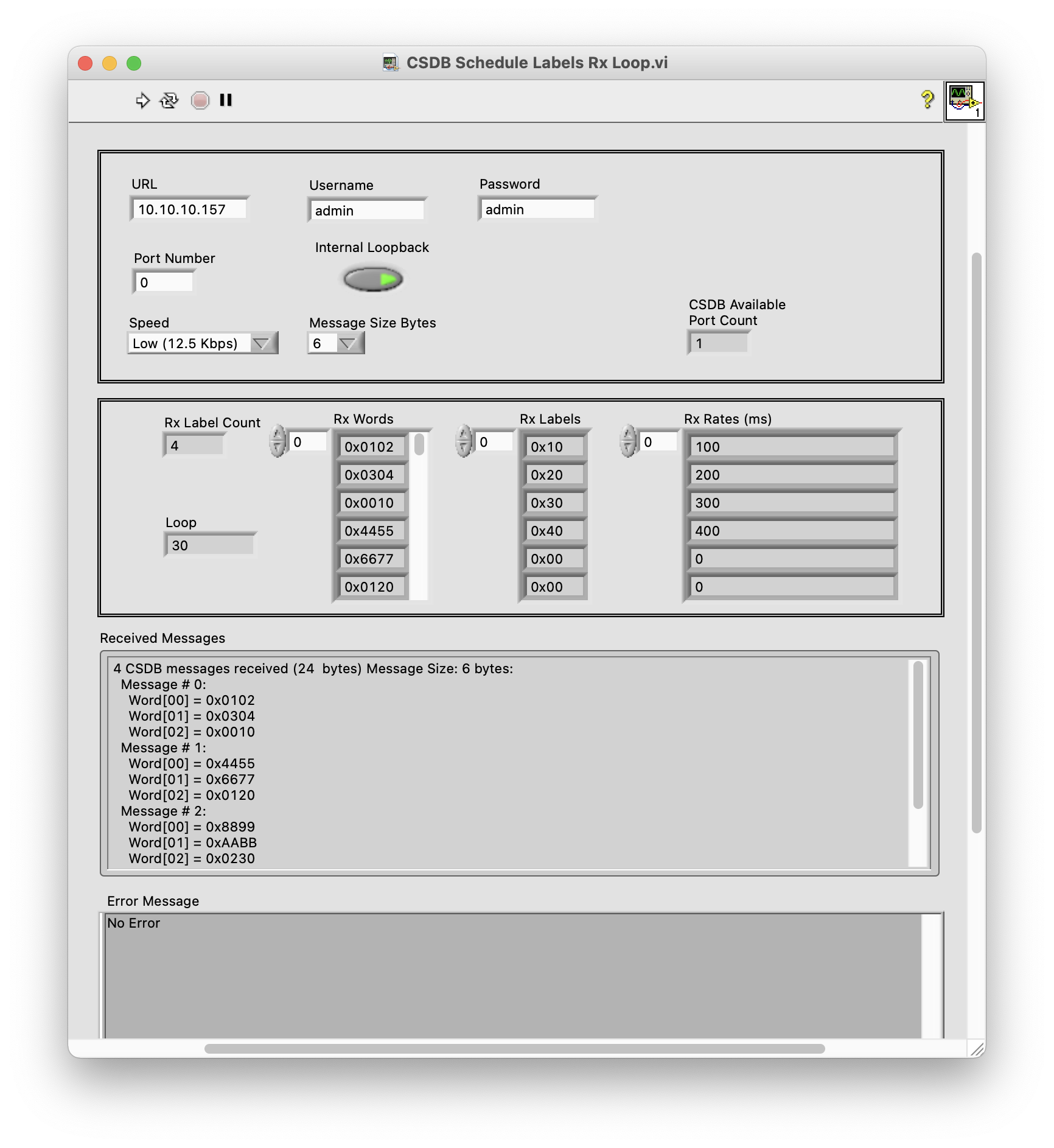

CSDB Schedule Labels Rx Loop.vi
Description
CSDB Schedule Labels Rx Loop demo is used to execute multiple CSDB message periodic receive cycle. The CSDB Schedule Labels Tx Loop.vi demo is used to send the periodic CSDB messages.
Walkthrough
Once session is started, this demo configures the CSDB port features (speed, message size and internal loopback). Once the cycle is executed the port is closed and the session is terminated.
Running both Schedule Labels Tx and Rx demos
CSDB Schedule Labels Rx Loop.vi and the CSDB Schedule Labels Tx Loop.vi VIs are used to demonstrate sending and receiving periodic CSDB messages using disctincts VIs. The Schedule Labels Rx demo VI will reset the device and must be started before the Schedule Labels Tx VI demo.
1- Open boths CSDB Schedule Labels Tx Loop.vi and CSDB Schedule Labels Rx Loop.vi 2- Start CSDB Schedule Labels Rx Loop.vi 3- Start CSDB Schedule Labels Tx Loop.vi
