CSDB Send Receive With Timetag.vi

Description

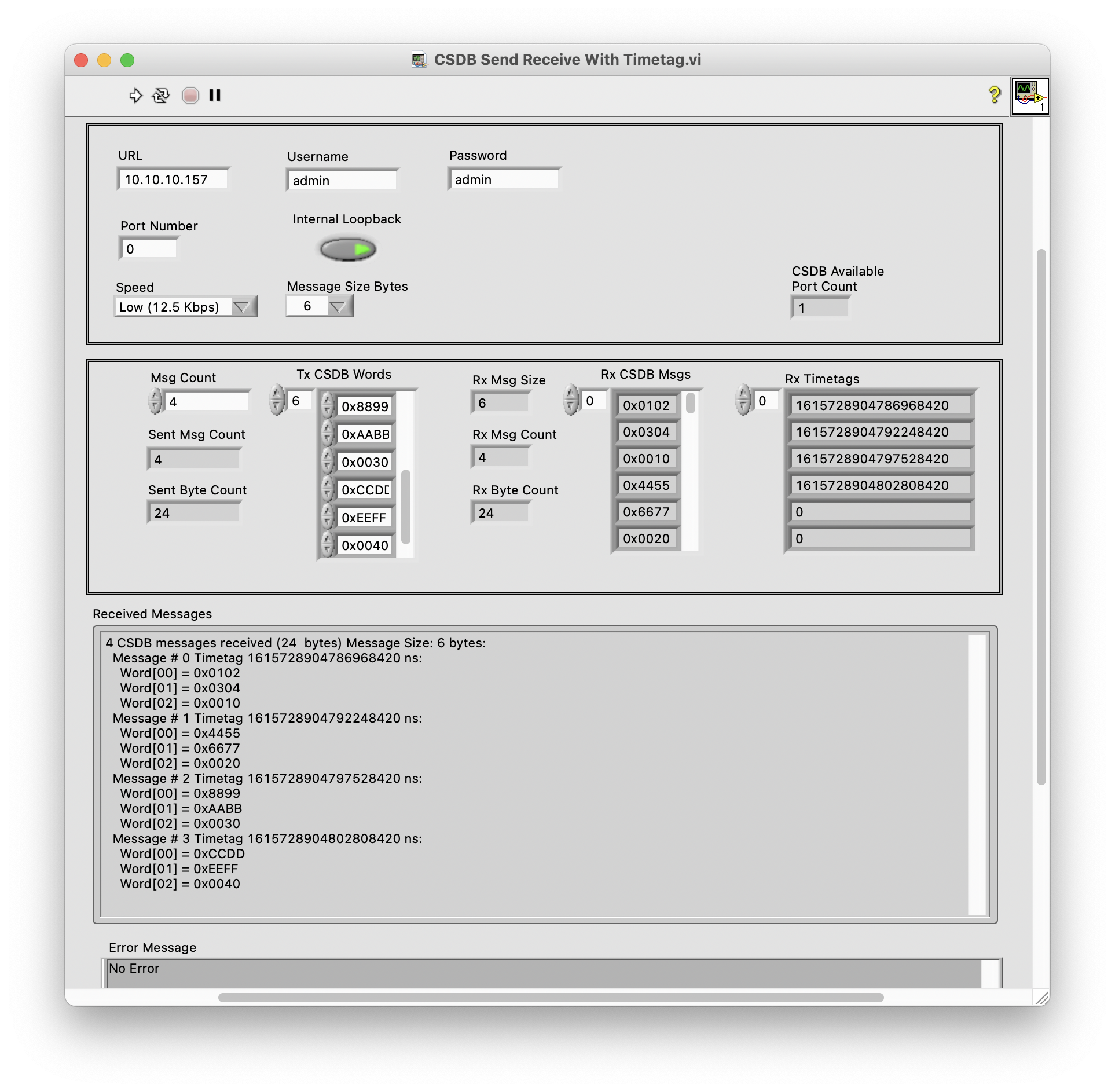

CSDB Send Receive With Timetag demo is used to execute CSDB message transmit / receive cycle with the possibility to get the time tag for each CSDB message received.

Walkthrough

Once session is started, this demo configures the CSDB port (speed, parity, stop bit size, message size and internal loopback).

Before starting the transmit / receive cycle, user needs to select the number of CSDB messages to transmit and enter the CSDB messages to send onto the data bus. On receive, CSDB messages are retrieved with time tags and displayed. Once the cycles are executed the port is closed and the session is terminated.
