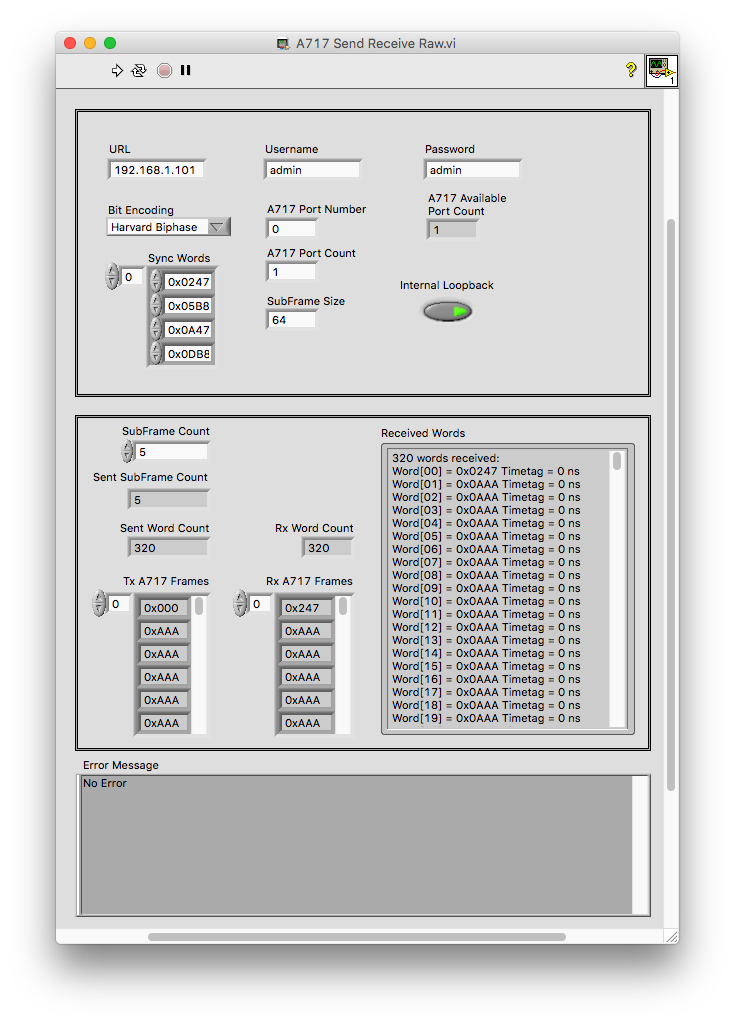

A717 Send Receive Raw.vi
Description
A717 Send Receive Raw demo is used to execute ARINC 717 frame transmit / receive cycle with raw mode activated.
Walkthrough
Once session is started, this demo configures the ARINC 717 port (bit encoding, internal loopback, subframe size and port count).
Before starting the transmit / receive cycle, user needs to select the number of ARINC 717 subframes to transmit and enter the ARINC 717 frames to send onto the data bus. On receive, ARINC 717 words are retrieved and displayed. Once the cycles are executed the port is closed and the session is terminated.
