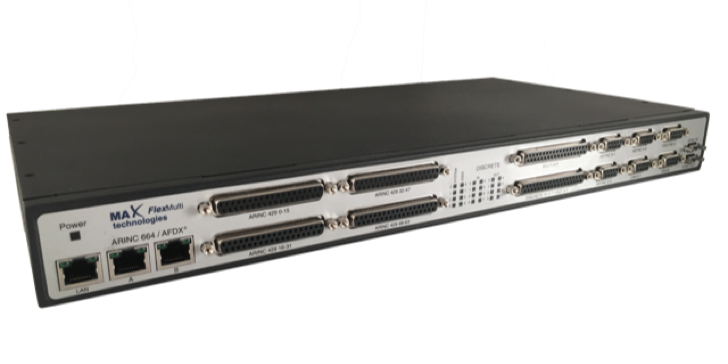

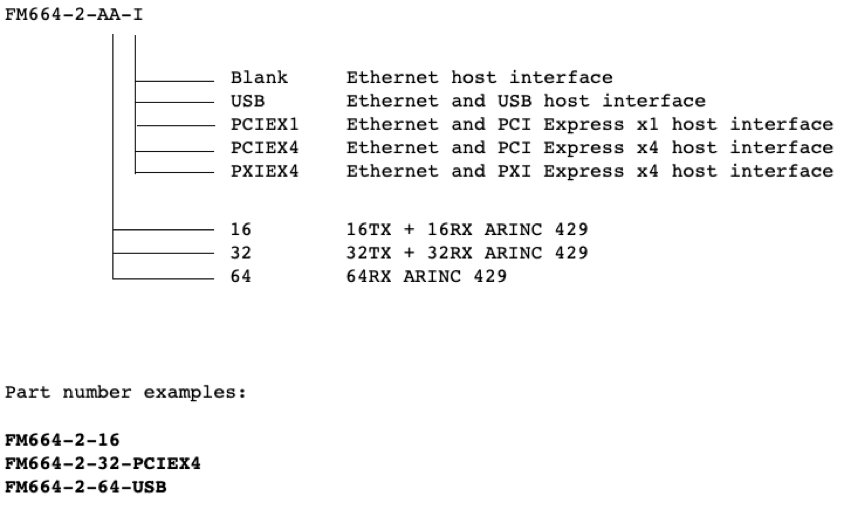

FlexMulti 664

ARINC 664 / AFDX ports

• 2 ARINC 664 / AFDX ports
• Support for Boeing, Airbus and COMAC
• ARINC 664 EDE support
• Can emulate up to 128 Virtual Links (VL) with programmable ports on a per-message basis.
• 10/100/1000 Mbps ARINC664
• Full bus monitoring
• Error injections:
• Preamble length error
• Preamble pattern error
• Start Frame Delimiter error
• Abort error
• Interframe Gap error
• Net ID override
• MAC CRC error
• IP checksum error
• Jitter delay
• MAC SN error
• EDE SID override
• EDE SN error
• EDE Timestamp error
• EDE CRC error
• VL MAC destination address override
• Error detection:
• CRC error
• Preamble length error
• Start Frame Delimiter error
• Frame too long error
• Fragment error
• UDP length error
• UDP checksum error
• UDP header length error
• IP address error
• IP flags error
• IP TTL error
• IP protocol error
• IP checksum error
• IP total length error
• IP header version error
• MAC type error
• MAC interface error
• MAC address error
• MAC SN error
• EDE CRC error
• EDE timestamp error
• EDE SN error
• Frame too short error

ARINC 825 / CAN bus / CAN FD dedicated ports

• Two ARINC 825 / CAN bus ports
• CAN Flexible Datarate (CAN FD) is supported on both ports.
• Programmable Bit Rate: 83.3/125/250/500/1000 Kbps
• Precise 64-bit timetag
• Error injections:
• Single shot
• No ACK
• CRC error
• Error detections:
• CRC error
• ID error
• DLC error
• Segment error

MIL-STD-1553 buses

• 1 or 2 multifunctions dual-redundant MIL-STD-1553 buses
• Concurrent BC/BM/RTs
• Precise 64-bit timetag
• 12.5 nanosecond time-tag on MIL1553 and EBR
• Advanced transaction counters and error counters
• Discrete output line triggered on error
• Late Update detection
• BC/BM/RTs started time
• Major frame start and stop on time-tag
• Frame rate can be controlled by an external clock
• Conditional branch to minor frame
• Conditional branch on Discrete I/O trigger
• Minor frame rate up to 6553 ms
• Minor frame sent on modulo
• Minor frame repeat count
• Minor frame duration (independent for each minor frame)
• Message sent on modulo (1 to 256)
• Message sent on gap or on fixed delay
• Message command real-time update
• Error injections:
• Command/status address override
• Bit count error
• Sync pattern error
• Transmit on  alternate bus
• Transmit on both buses
• Parity error
• Word count error
• Manchester error
• Supersed command
• Force RT to not respond
• Force RT to respond
• Word gap error in 1/8 bit time
• Do not send command
• Error detections:
• Manchester error
• Parity error
• Extra bit error
• RT response too fast
• Data unexpected error
• Bad sync error
• Data length error
• Status address error
• RT-RT data error

ARINC 429 dedicated ports

• Up to 64 ARINC 429 ports (2Tx + 2 Rx)
• Programmable Bit rate from 4 to 125 kbps
• Error injections:
• Parity error
• Bit count error
• Error detection:
• Parity error
• Precise 64-bit timetag

MULTI

Parametric ports (8Tx + 8 Rx) programmable as:

  ARINC 429

• Prog. Bit rate from 4 to 800 kbps
• Error injection (Parity and Bit count) and detection (Parity)
• Prog. voltage  0-13V



 ARINC 717 Flight Data Recorder

• Bit rate:  32/64/128/256/512/1024/2048/4096/8192 wps



 CSDB

• Prog. Bit rate from 200 bps to 4 Mbps
• Error injections:
• Parity error
• Bit count error
• Error detections:
• Parity error
• Stop bit error



 Serial ASYNC RS-232 / RS-422 / RS-485

• 200 bps to 10 Mbps
• Support for Rockwell-Collins CSDB protocol
• Error injections:
• Parity error
• Bit count error
• Error detections:
• Parity error
• Stop bit error

  HDLC / SDLC

• 490 bps to 4 Mbps
• Error injections:
• Flag error
• Abort error
• FCS error
• Frame size error
• Error detections:
• Closing flag error
• Abort error
• Decoding error
• FCS error
• Frame size error
• Stop bit error

  Clock / Pulse generator

• Pulse duration 100 ns 20*2^32 ns

  Differential discrete I/O

ARINC 708 Weather Radar ports

ARINC 708 1Tx+1Rx ports, shared with MIL-STD-1553 ports

1 Mbps speed

 Precise 64-bit timetag

Error injections:

Manchester error

BOW Sync error

EOW Sync error

Bit count error

Error detections:

Manchester error

BOW Sync error

EOW Sync error

Bit count error

Word length error

Serial ASYNC RS-422/485 dedicated ports

• 8 Serial ASYNC RS-422/485 ports (4Tx + 4 Rx)
• 200 bps to 10 Mbps
• Support for Rockwell-Collins CSDB protocol
• Error injections:
• Parity error
• Bit count error
• Error detections:
• Parity error
• Stop bit error
• precise 64-bit time tag

Discrete dedicated I/O ports

• 16 Discrete I/O with FIFO and timetags dedicated ports (8Tx + 8 Rx)
• Support for differential RS-422, single TLL or 28V avionic discrete
• ARINC 763 compatible
• Up to 10 Mbps

Synchronisation I/Os

• IRIG-B
• Input B00X, B12X
• Output B007
• Device-to-Device Sync I/O
